Product Overview

BD-100M-1F4T Ethernet Switch is designed by
Wintop. For Network high-definition monitor, network engineering etc. It
provides high speed packet forwarding capacity and sufficient  backboard bandwidth to ensure clear image and
smooth transmission. Embedded static and surge protection circuit to improve
product stability. Supports one-key VLAN configuration mode to achieve ports
isolating and network storm inhibiting for protecting the information safety,
preventing virus and online attack. It supports video channel mode, one-to-one
correspondence channel mode can be configured under two same products’downlink
port.

Support long distance transmission mode,
compulsory electric down link port  data rate is 10Base-T, this
increasing the transmission distance of down linkport. Under this state, the
transmission distance of down link port is  0-350m,which can completely meet the
demands of network video monitoring system and network engineering. The DIP
type desktop Ethernet switch is oriented to the terminal access layer, according
to the port type and configuration quantity,we have model BD-100M-1F4T which has
One Fast optical  interface, Four Fast electrical  interfaces ; every electric interface supports
10/100Mbps self-adaptation and MDI/MDIX.

Product Features

  ●  One-key VLAN mode configuration, realize port
isolation

  ●  One-key video channel
mode configuration, downlink port one-to-one channel correspondence
transmission mode

  ●  One-key long distance mode
configuration, increase the transmission distance
of the lower electrical interface

  ●  Input voltage range
100~240V AC

Product Properties

Technology

Support Standard:

IEEE
802.3 10BaseT

IEEE
802.3u 100BaseT

Switch Properties

Backboard bandwidth:1Gbps    MAC address
table:  1K

Message cache size: 512Kbits

Interface

Optical interface: 100Mbps
(Interface type: SC, ST, FC and SFP Slot  are available)

Network
interface: 10/100Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X.
normal transmission distance 0-100m; long distance mode 0-350m.

DIP
switch: , ‚

LED
indicator: PWR, Link, 10/100Base-T

Optical Fiber

Input
voltage: 100~240V
AC

Input
current: max
30mA

Physical Properties

Housing:metal, IP30 protection

Dimension: 125x109x 32 mm

Weight:430g

Installation
mode: desktop installation, wall-mounted installation

Environmental Constraint

Working
temperature: -20 ~ 60°C(-4 ~ 140°F)

Storage
temperature: -40 ~ 85°C(-40 ~ 185°F)

Environment
relative humidity: 5 ~ 95% (non-condensing)

Standard and Certification

Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A

Electromagnetic sensibility (EMS):

IEC61000-4-2 (ESD) Class 3, IEC
61000-4-3 (RS) Class 3, IEC 61000-4-4 (EFT) Class 2, IEC 61000-4-5 (Surge)
Class 3, IEC 61000-4-6 (CS) Class 3

Vibration resistance: IEC60068-2-6

Impact resistance: IEC60068-2-27

Free falling: IEC60068-2-32

Note: Please visit Wintop official website
to check the latest certifications.

MTBF (mean time between failures)

Time:500000h

Warranty

Quality warranty: 3 years

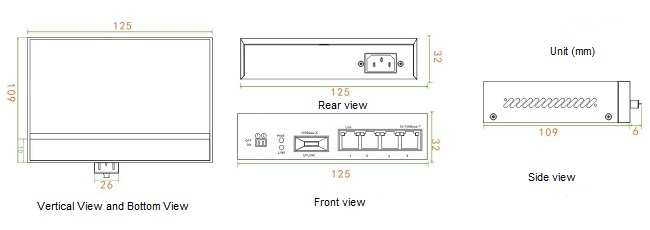

Product
Dimension
