Overview:

The device provides 4Channel 10M/100M /1000M Ethernet
interface, master fiber interface and backup interface. This four Ethernet
interface is switch interface, can be cascaded through 2 fiber interface,
convenient for chain group network, support VLAN.

Features:

Ø  Support IEEE802.3x and IEEE802.3u+ and IEEE802.3

Ø  Automatically adapt to 10/100/1000Mbps environment, upgrade network
easily;

Ø  provides 4 GE UTP Port, 2*1000BASE-X optical port(SFP module
Optional);

Ø  Support full-duplex and half duplex network communication, with
auto-negotiation capability;(

Ø  With the anti death monitoring automatic reset function;

Ø  The Ethernet interface supports jumbo frames 10K),
which can match with the switch product complied with IEEE802.1Qprotocol

Ø  Support Console
management/CLI command, and can
Support QINQ, VLAN

Ø  Ethernet ports should can be work as Access or Trunk independently;

Ø  Effectively isolate network conflicts and broadcast packets, have
broadcast storm prevention function

Ø  Multiple devices can be cascaded to Ethernet network

ØSupport
4U Rack frame type installation

Parameters:

u Ethernet
UTP Interface

 Interface rate:            10/100/1000 M, half/full duplex
auto-negotiation

 Interface Standard:        Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

 MAC Address Capability:   4096

 Connector:                    RJ45,
support Auto-MDIX

u Optical
Ethernet interface

  Wave
Length:          1310nm, 1550nm

 Interface
rate:         1000 M,
half/full duplex

 Interface
Standard:    Compatible with
IEEE 802.3, IEEE 802.1Q (VLAN)

 MAC
Address Capability:  4096

 Connector:       FC/SC

Fiber Transmission Distance is limited by optical circuit loss and additional
loss as a result of connectors, fittings and patch panel.

Transmission distance may also be limited by fiber optic bandwidth.

u Working environment

Working temperature:      -10°C ~ 50°C

Working Humidity:          5%~95
% (no condensation)

Storage temperature:     -40°C ~ 80°C

Storage Humidity:       5%~95 % (no condensation)

Specification:

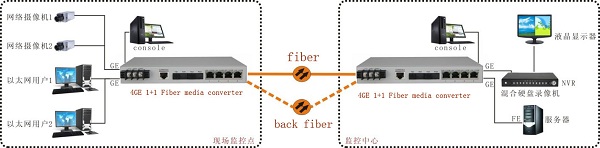

Application:
