Gigabit SFP port Media Converter and 4 Ethernet LAN PORTS

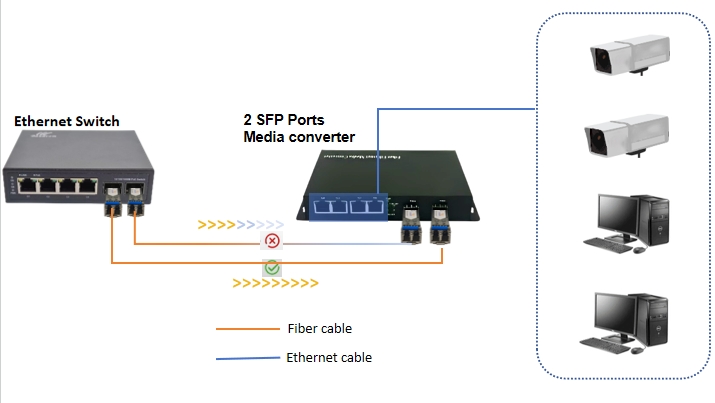

SFP media converter are designed to meet the massive needs for network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 80KM.
Description
SFP Port media converter are designed to meet the massive needs for network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 80KM.
SFP media converterare fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Features：
►10/100/1000Base-TX to 1000BASE-FX Converter
►Standard : IEEE 802.3z & 802.3ab

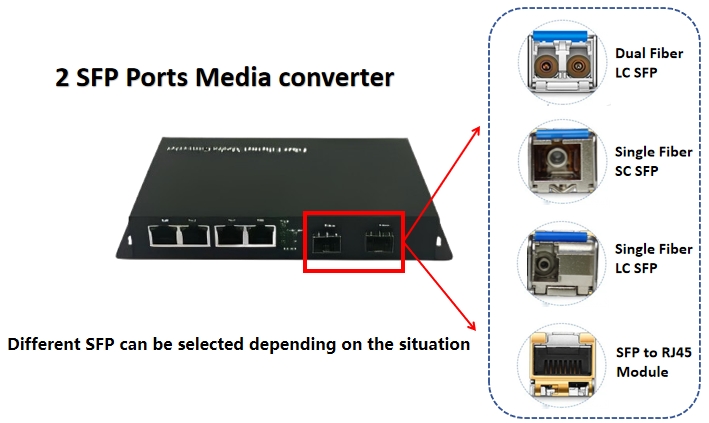

►Interface: 4 x RJ-45 connector / 2 x SFP Slot
►MDI/MDIX Auto-Crossover supported
►LED: Power , DUP,FP-LINK,RX,100,TX
►Plug-and-Play installation
►Support Jumbo Frame (64-9216 Byte)
►Support Voltage Monitor
Specification
|
Item |
SFP Port media converter Specification/Term |
|
|
1 |
Item number |
SFP series |
|
2 |
Standard Protocol |
IEEE802.3u,10/100/1000Base-T,1000Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab |
|
3 |
Flow control |
IEEE802.3x port flow control and back pressure control |
|
4 |
Transmission speed |
10/100/1000M auto-negotiation |
|
5 |
Transmission mode |
Full-duplex/semi duplex(auto-negotiation) |
|
6 |
Conversion mode |
Storage transmission |
|
7 |
MAC address |
VLAN 4K |
|
8 |
Buffer space |
128KB |
|
9 |
Packet length |
Storage transmission:9728Bytes,straight-through,infinite. |
|
10 |
Time-delay |
9.6us |
|
11 |
Bit error rate |
<1/1000000000 |
|
12 |
MTBF |
100,000 hours |
|
13 |
Power supply |
Outside: 5V DC 1A ; Build-in: 110~265V AC 48V DC |
|
14 |
Power dissipation |
<2.5W |
|
15 |
Interface |
Electric port: RJ45,Fiber port: SFP |
|
16 |
Twisted-pair cable |
Cat.5 UTP cable |
|
17 |
Operating temperature |
0~60℃ |
|
18 |
Storage temperature |
-20~70℃ |
|
19 |
Humidity |
5%~90% (no condensation) |
