Overview

BD-ONU-125 series single-user  1GE micro mini ONU is designed for ONU in
different FTTH solutions, the carrier-class FTTH application provides date service access. The micro ONT
adopts high-performance and low-consumption chips, and supports CTC V2.0
interconnection and interworking standard of China Telecom. With the help of
NGBN View NMS, it can provide subscribers with abundant services, and totally
meet the needs of carrier-class FTTH devices. It is designed by ZTE chipset.

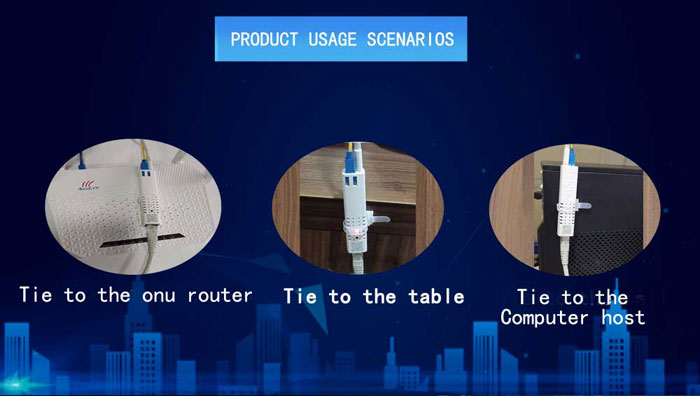

             The mini ONU has small size, it is suitable for
installation in various occasions

                                                   small
size, easily installation

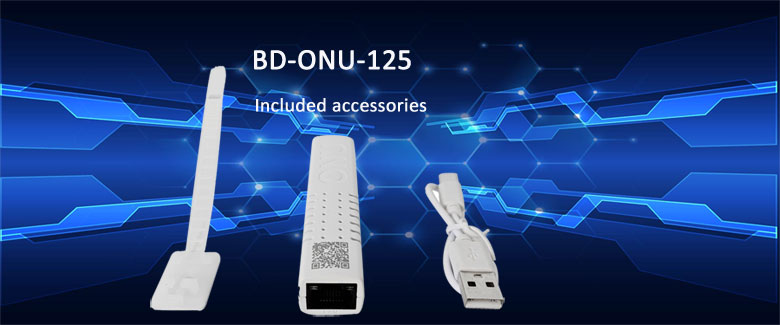

Mini ONU Feature

n  Router mode supports PPPoE / DHCP / static
IP

n  Support
port-based rate limitation and bandwidth control

n  In compliant with ITU-T G.984 Standard

n  Up to 20KM transmission Distance

n  Support data encryption, group broadcasting, port VLAN separation, etc.

n  Support Dynamic Bandwidth Allocation (DBA)

n  Support IPv4 &IPv6

n  Support ONU auto-discovery/Link detection/remote upgrade of software

n  Support VLAN division and user separation to avoid broadcast storm

n  Support power-off alarm function, easy for link problem detection

n  Support broadcasting storm resistance function

n  Specialized design for system breakdown prevention to maintain stable
system

n  Support software online upgrading EMS network management based on SNMP, convenient
for maintenance

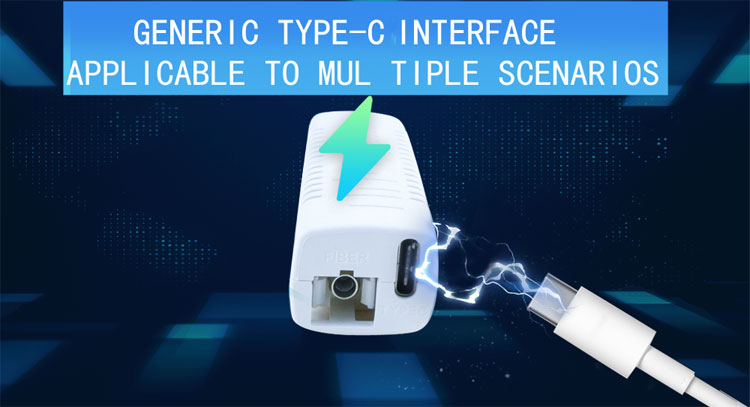

                                                                        Type-C
power supply

Mini ONU Hardware Specification

Item

Parameter

Interface

PON Interface

1 XPON optical interface

Meet Class B+ standard

Upstream 1.244Gbps, downstream 2.488Gbps

SC-UPC single-mode fiber

split ratio:1:128

Transmission distance 20KM

User Ethernet Interface

1*10/100/1000M auto-negotiation

Full/half duplex
mode

RJ45 connector

100m distance

Power Interface

5V Type-C Power
supply

Performance Parameters

PON Optical Parameter

Wavelength: Tx
1310nm, Rx1490nm

Tx Optical
Power:0.5～+5dBm

Rx Sensitivity:
-27dBm

Saturation
Optical Power: -8dBm

Connector Type:
SC-UPC

Optical Fiber:
9/125μm single-mode fiber

Data
Transmission Parameter

Packet Loss
Ratio:<1*10E-12

latency:
<1.5ms

Gateway

Router mode
supports PPPoE / DHCP/ static IP

WAN support
Router and Bridge mode

WAN support
Internet

LAN supports
DHCP and static IP

Support NAT and
NAPT

Business Capability

Layer 2 wire
speed switching

Support  VLAN TAG/UNTAG, VLAN conversion

Support
Port-based speed limitation

Support Priority
classification

Support storm
control of broadcast

Network Management

Management Mode

Support ITU-T
G.984 OMCI, ONU can be remotely managed by OLT

Support Remote
management through  Telnet or http

Local management

Management Function

Status monitor,
Configuration management, Alarm management, Log management

Indicator

LED Indicator

PWR: Power up or
down

LOS: Optical
Link Status

PON：ONU Registered

LINK/ACT: Link
Status of Ethernet Interface

Physical Features

Shell

Plastic casing

Power

External 5V 1A Type-C
 power supply

Power
consumption: <2W（FD101HC）,<2.3W(FD111HC)

Physical Specifications

Item

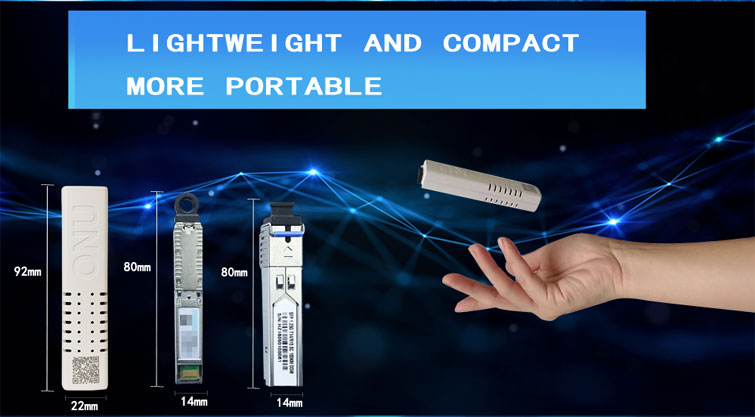

Dimension：92mm(L) x 21.5mm(W) x 17mm (H)

Item
weight：0.03kg

Environmental  Specifications

Operating
temperature:  -20 to 70 ºC

Storage temperature:
-40 to 85 ºC

Operating
humidity: 10% to 90% (Non-condensing)

Storage
humidity: 10% to 90% (Non-condensing)

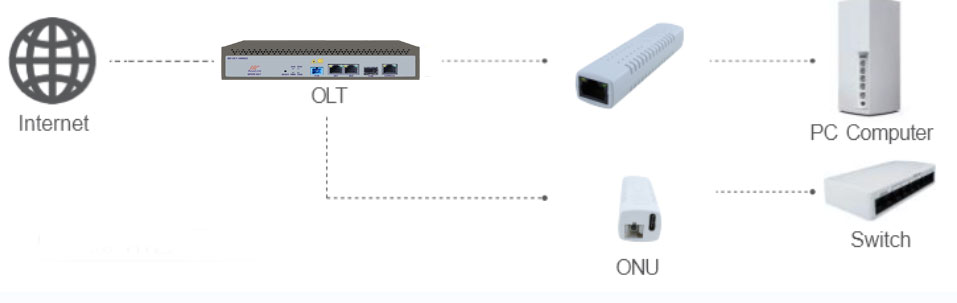

Application

n  Typical Solution：FTTH、FTTB、PON+EOC

n  Typical Business：INTERNET、IP Camera
