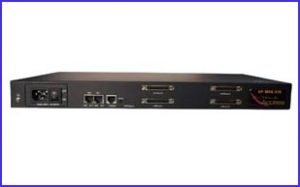

BD-01M Fixed Adjacent channel Modulator
Baudcom BD-01M Fixed Adjacent channel Modulator
INFORMATION
Feature
1.IF
process with excllent performance
2.SAW
filtering for maintenance free adjacent channel configuration
3.Phase
lock loop frequency control prevents frequency drift
4.LED
Display.Front panel control for easy installment
5.Excellent
video and audio linearity for superior picture quality
6.Standard
19” housing for standard rack
7.PAL,NTSC
and SECAM optional
8.Excellent
value for your investment dollar
Technical parameter
|
RF |
Output Frequency |
45-870MHz |
|
Frequency Accuracy |
±5KHz |
|
|
Output Level |
113dBmV |
|
|
Outband Suppression |
360dB |
|
|
Sideband Suppression |
360dB |
|
|
Output Impedance |
75W |
|
|
A/V Ratio |
-10dB ~ -20dB |
|
|
Video |
Input Level |
0.6 ~ 1.5Vp-p |
|
Input Impedance |
75W |
|
|
Input Return Loss |
30dB min |
|
|
K Vaule |
4% max( 2T |
|
|
SNR |
50dB(Non-weight) |
|
|
Delay Response |
40nsec |
|
|
Flatness |
±1dB( 25Hz ~ 5.8MHz) |
|
|
Differential Gain |
±4%(Modulation 87.5%) |
|
|
Differential Phase |
±4° |
|
|
Aduio |
Input Level |
-10 ~ 10 dBm |
|
Input Impedance |
10KW min |
|
|
Flatness |
±1dB max(40Hz ~ 15KHz) |
|
|
Harmonic Distortion |
<0.5%,50Hz ~ 15kHz |
|
|
SNR |
-60dB |
|
|
Power Supply |
AC Input |
110-220V |
