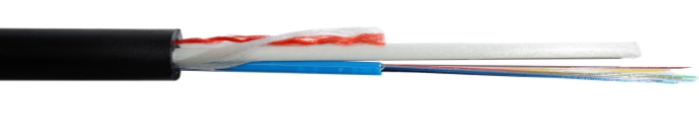

12Core Aerial Self-Supported ASU Optical fiber cable
The ASU fiber cable are made of a loose tube structure and water-resistant gel compound which provide crucial protection for the fiber. Water-blocking material is over tuble to keep the cable watertight. Two plastic FRP elements are placed on two sides parallelly.
Compared with the traditional ADSS optical
cable, the 12core ASU optical cable with same span can reduce the production cost and
reduce the overall structure size.

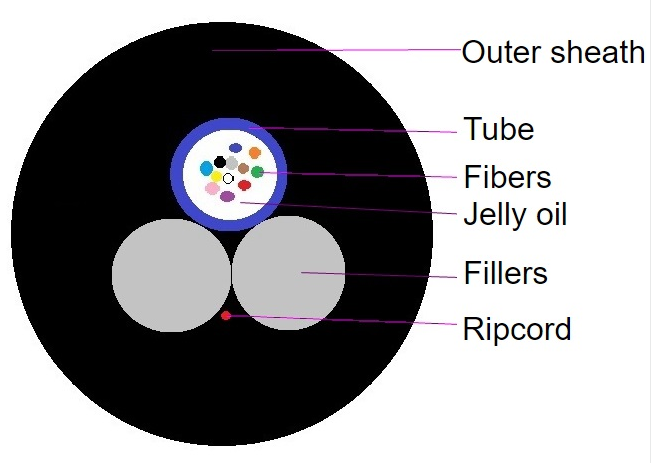

Profile View
Features:
- Non-metal strength member
- High Strength Kevlar yarn member
- Replacing existing aerial ground wires
- 2 FRP brings better span.
- Compact design makes the cable in small size and light
weight. - Easy estallation.
Application:
- Adopted to Outdoor distribution
- Network in high electromagnetic interfering places
- Suitable for aerial network
- Can be installed conveniently and operated simply

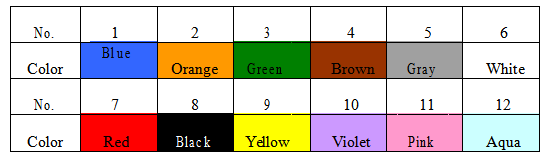

Fibers & Loose Tube Colours Display
Cable Parameters
|
Items |
Specifications |
|
|
Fiber No. |
12 |
|
|
Ripcord No. |
2 |
|
|
Loose Tube |
Dimension |
2.0mm±0.1 mm |
|
Material |
PBT |
|
|
Tube No. |
1 |
|
|
Fibers per Tube |
12 |
|
|
FRP |
OD. |
1.9mm *2 |
|
No. |
2 |
|
|
Material |
PVC |
|
|
Outer Sheath |
OD. |
7.0 ±0.1mm |
|
Material |
PE |
|
|
Color |
Black |
|
Mechanical and Environmental Characteristics
|
Items |
Unit |
Specifications |
|
Weight |
Kg/km |
45 ±5kg/km |
|
Max. Tensile （Long Term） |
N |
2500 |
|
Max. Tensile （Short |
N |
4000 |
|
Crush（Long Term） |
N/10cm |
1500 |
|
Crush（Short Term） |
N/10cm |
3000 |
|
Min. Bend Radius（Dynamic） |
mm |
25D |
|
Min. Bend Radius（Static） |
mm |
10D |
|
Installation Temperature |
℃ |
-20～+60 |
|
Operating Temperature |
℃ |
-40～+70 |
|
Storage Temperature |
℃ |
-40～+70 |
