12core outdoor drop fiber optical cable with steel
The 12-core optical cable is a communication cable with 12 optical fibers (components of silica, quartz glass) built in.In terms of structure, 12-core optical cables are mainly divided into two types: outdoor and indoor. There are mainly two types of outdoor cores: central beam tube type and layer stranded type.
Optical Fiber Cable Features
Fiber color code
Color-coding
of the fiber will be clear, and not fade under the influence of the temperature
of working and installation environment.

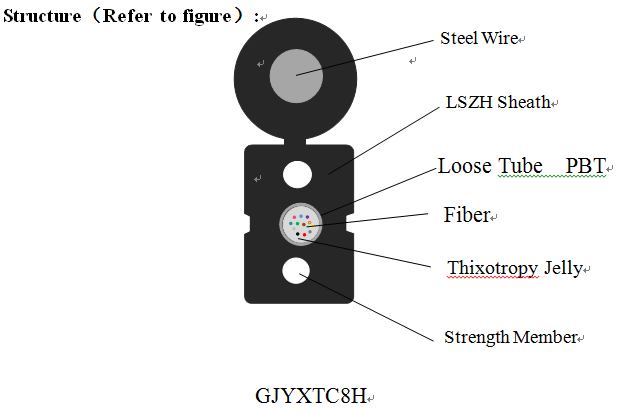

Construction
|
Item |
Description |
|
|
Cable Diameter |
(3.2±0.2)×(6.6±0.3)mm |
|
|
Optical Fiber |
Type |
G .657A1 |
|
Numbers |
12 |
|
|
Fiber Color |
Blue、Orange、Green、Brown、Gray、White 、 Red、Black、Yellow、Purple、Pink、Aqua |
|
|
Loose Tube
|
Material |
PBT |
|
Outer Diameter |
2.0±0.1mm |
|
|
Filling（Fiber |
Thixotropy Jelly |
|
|
Loose Tube Color |
Natural |
|
|
Central Strength Member |
Material |
Phosphating |
|
Outer Diameter |
0.45±0.01mm |
|
|
Approx. Cable Diameter |
(3.2×4.5)±0.2mm |
|
|
Steel Wire |
Material |
Phosphating Steel Wire |
|
Diameter |
1.0±0.03mm |
|
|
Approx. Steel Wire Sheath Outer Diameter |
2.0±0.2mm |
|
|
LSZH Sheath of Cable |
Material |
BLACK LSZH |
|
Approx. Cable Net Weight |
32kg/km |
|
|
Fiber Attenuation |
dB/km(1310nm) |
≤0.4dB/km |
|
dB/km(1550nm) |
≤0.3dB/km |
|
Mechanical and physical characteristics of the cable
|
Cable Type |
Tensile Strength (N) |
Crush Resistance Strength (N/100mm) |
Min. Bending Radius (mm) |
|||
|
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
|
|
GJYXTC8H |
600 |
300 |
2200 |
1000 |
20H |
10H |
|
Operation Temperature:-40℃~+60℃ |
||||||
Unless otherwise required the sheath will be marked at intervals of 1m,
containing:
(a) Indication
in meters
(b) Quantity
and type of fibers
(c) Factory
name
(d) Date of
manufacturing (year)
(e) Other
requirements
The
marks will be permanent and legible for the duration of the cable life.
Applications
Adapted to core network,
access network and fiber to home
Packaging & Delivery
All
cables will be delivered on drums with protection of both ends of the cable.
Each drum will have a waterproof mark according to requirements.
Normal cable length:1 km,
or as per the customer’s requirements
