INFORMATION

Product Description:

3-port
industrial PoE switch / media converter, with 2x 10/100M Ethernet PoE ports
and 1x 100M SC port, for connecting with devices like computer, switch, hub,
server, etc. Optical fiber SC interface extends network transmission distance
limit from 100m to above 25KM (multi-mode 2KM, single-mode 25KM), it simply
connects remote multiple motherboard servers, relays, hubs, terminals and
multiple terminals. BD-SIPS31032PS-S product components were rigorous screened,
have superior performance in stability, environmental adaptability. Shells were
made by aluminum extrusion, more lighter, stronger, better resistance ability
to  corrosion and electromagnetic
interference, ensure stability and security of Industrial Ethernet Switch,  plus standard DIN-35 rail type installation
method.

Features:

   ●   Industrial design, 2x 10/100M Ethernet RJ45  PoE ports with AutoUplink™ and 1x 100M single
mode single fiber SC optical port

   ●   Compatible
with IEEE802.3af/at

   ●   Supports IEEE802.3x flow
control for Full-duplex Mode and back pressure for Half-duplex Mode

   ●   RJ-45
port supports Auto MDI/MDI-X

   ●   Automatic
MAC address learning and aging

   ●   Auto-Negotiation
for Full-duplex Mode and Half-duplex Mode

   ●   Plug and
play, with LED indicators for monitoring power/link/activity, easy to use.

   ●   Provides
DIN35 rail-type installation method

   ●   Electromagnetic
compatibility of up to 4 grade standard

   ●   IP40 protection class

   ●   Superior performance, successfully used in industrial field

Technical Specification:

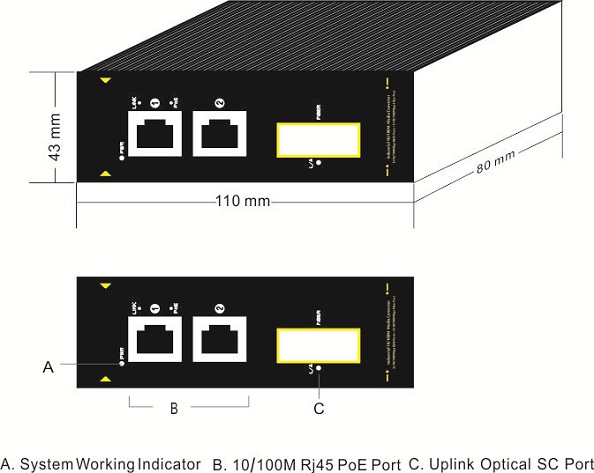

Product Dimension Display:

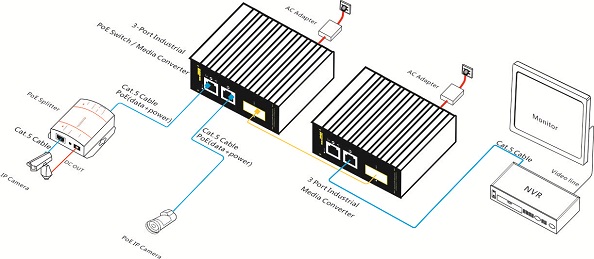

Product Usage Display:
