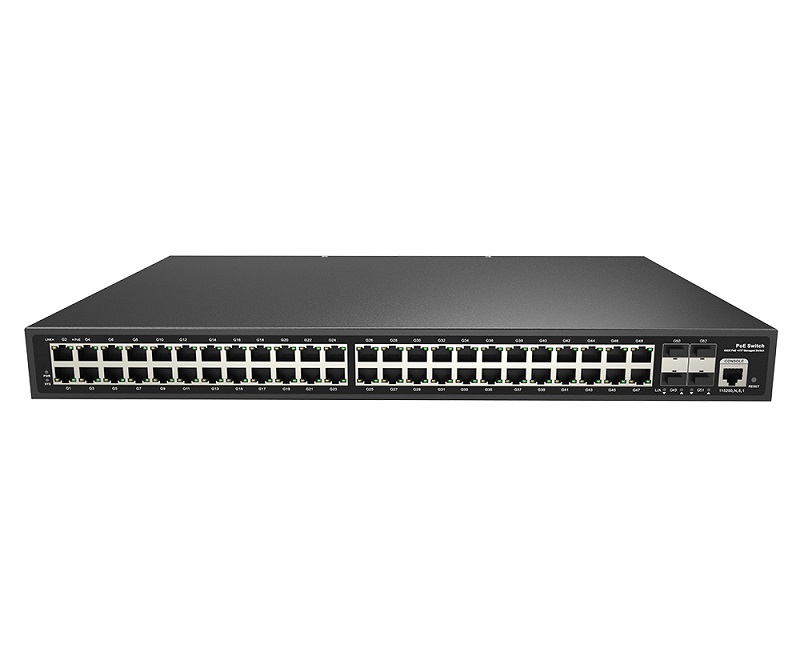

52-port Full Gigabit Managed PoE Fiber Switch (BD-S36048PFM)

The BD-S36048PFM is a full gigabit managed PoE switch. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Port 1-48 can support IEEE802.3af/at standard PoE power supply. single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply.It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitory and small and medium-sized enterprise.

Request price Skype WhatsApp

INFORMATION

OVERVIEW

The BD-S36048PFM is a
full gigabit managed PoE switch. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X
SFP fiber slot ports. Port 1-48 can support IEEE802.3af/at standard PoE power
supply. single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect
and recognize the power receiving equipment that meets the standard and supply
power through the network cable. It can supply power to POE terminal equipment
such as wireless AP, webcam, VoIP phone, building visual access control
intercom, etc. through network cable, to meet the network environment that needs
high-density PoE power supply.It is suitable for hotels, campuses, parks, shopping malls, scenic spots,
hospitals, factory dormitory and small and medium-sized enterprise.

The BD-S36048PFM has L2+full
Web management function, supports IPV4 management, static route full line rate
forwarding, complete security protection mechanism, complete ACL/QoS policy and
rich VLAN functions, and is easy to manage and maintain. Supports multiple
network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup
and network reliability. When one-way network fails, communication can be
quickly restored to ensure important Uninterrupted communication for
applications. According to the actual application requirements, you can
configure multiple application services such as PoE power management, port
traffic control, VLAN division, and SNMP through the Web management mode.

FEATURE

n Gigabit
wire speed access, SFP port uplink

◇ Supports Gigabit Ethernet
port and gigabit SFP uplink port combination, which enables users to flexibly
build networking to meet the needs of various scenarios.

◇ Support non-blocking
wire-speed forwarding.

◇ Support full-duplex based
on IEEE802.3x and half-duplex based on backpressure.

n Intelligent
PoE power supply

◇ 48*10/100/1000Base-T RJ45
ports, meeting the needs of security monitoring, teleconferencing system,
wireless coverage, and other scenarios.

◇ IEEE802.3af/at PoE
standard, without damaging non-PoE devices.

◇ Priority system for PoE
port, it will supply power to the high priority level port first when the power
budget is insufficient and avoid overwork of the device.

◇ PoE network management,
realize PoE port power allocation, priority setting, port power status viewing,
time scheduling, etc.

n Strong business processing capability

◇ IEEE802.1Q VLAN, flexible
VLAN division, and QinQ configuration.

◇ QoS, Priority mode based
on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR
& SP+WRR.

◇ ALC, filter data packet
through configuring matching rules, processing operation & time permission,
and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP
Snooping.

◇ STP/RSTP/MSTP.

◇ Static and dynamic
aggregation.

n Security

◇ 802.1X authentication.

◇ Port isolation,Storm
control.

◇ IP-MAC-VLAN-Port binding.

n Stable and
reliable

◇ Low power consumption, galvanized
steel casing, The Fan active cooling.

◇ Self-developed power
supply, high redundancy design, providing a long term and stable PoE power
output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly pane
can show the device status through the LED indicator of PWR, Link ,PoE.

n Easy
operation and maintenance management

◇ Web management, CLI
command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and
SSHV1/V2.

◇ RMON, system log, LLDP,
and port traffic statistics.

◇ CPU monitoring, memory
monitoring, Ping test, and cable diagnose.

TECHNICAL SPECIFICATION

Model		BD-S36048PFM
Interface Characteristics
Fixed Port		4810/100/1000Base-T PoE ports (Data/Power) 4100/1000Base-X uplink SFP slot ports(Data) 1*RS232 console port(115200,N,8,1)
Ethernet Port		Port 1-48 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive
Twisted Pair Transmission		10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port		Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance		Multi-mode:850nm / 0~500M (1.25G), Single-mode:1310nm / 0~40KM, 1550nm / 0~120KM.
Chip Parameter
Network Management Type		L2+
Network Protocol		IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode		Store and Forward(Full Wire Speed)
Switching Capacity		368Gbps (Non-blocking)
Forwarding Rate@64byte		77.38Mpps
CPU		750MHz
DRAM		1G
FLASH		256M
MAC		16K
Buffer Memory		12M
Jumbo Frame		10K
LED Indicator		Power: PWR (Yellow), System: SYS (Yellow), Network: Link/Act (Yellow), PoE: PoE (Green), Fiber port: L/A(Green)
Reset Switch		Yes, One-button factory reset
PoE & Power Supply
PoE Port		Port 1 to 48
PoE Management		PoE working status Delay start of power supply PoE output priority configuration Scheduling of PoE operation and time Total power limit of PoE power supply PoE output power allocation, off& af &at
Power Supply Pin		Default 1/2 (+), 3/6 (-)
Max Power Per Port		30W; IEEE802.3af/at
Total PWR / Input Voltage		600W (AC100-240V)
Power Consumption		Standby<35W, Full Load<600W
Power Supply		Built-in power supply, AC 100~240V 50-60Hz 6.6A
Physical Parameter
Operation TEMP / Humidity		-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity		-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)		44029044.5mm
Net /Gross Weight		<4.8kg / <5.5kg
Installation		Desktop, 19 inch 1U cabinet
Certification & Warranty
Lightning Protection / Protection Level		Lightning protection: 4KV 8/20us; Protection level: IP30
Certification		CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty		3 years, lifelong maintenance.
	Network Management Features
	Interface	IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps.
	Layer 3 Features	L2+ network management, IPV4 management Static route, Default route @ 128 pcs, APR @ 1024 pcs Communication between different network segments and different VLANs
	VLAN	VLAN based on MAC, QinQ configuration Port configuration of Access, Trunk, Hybrid 4K VLAN based on port, IEEE802.1q,VLAN based on the protocol
	Port Aggregation	LACP, Static aggregation Max 26 aggregation groups and 8 ports per group.
	Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
	Multicast	MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out
	Port Mirroring	Bidirectional data mirroring based on port
	QoS	Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
	ACL	Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
	Security	IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection
	DHCP	DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay
	Management	One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 NMS – smart network management system platform(LLDP+SNMP)
	System	Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network

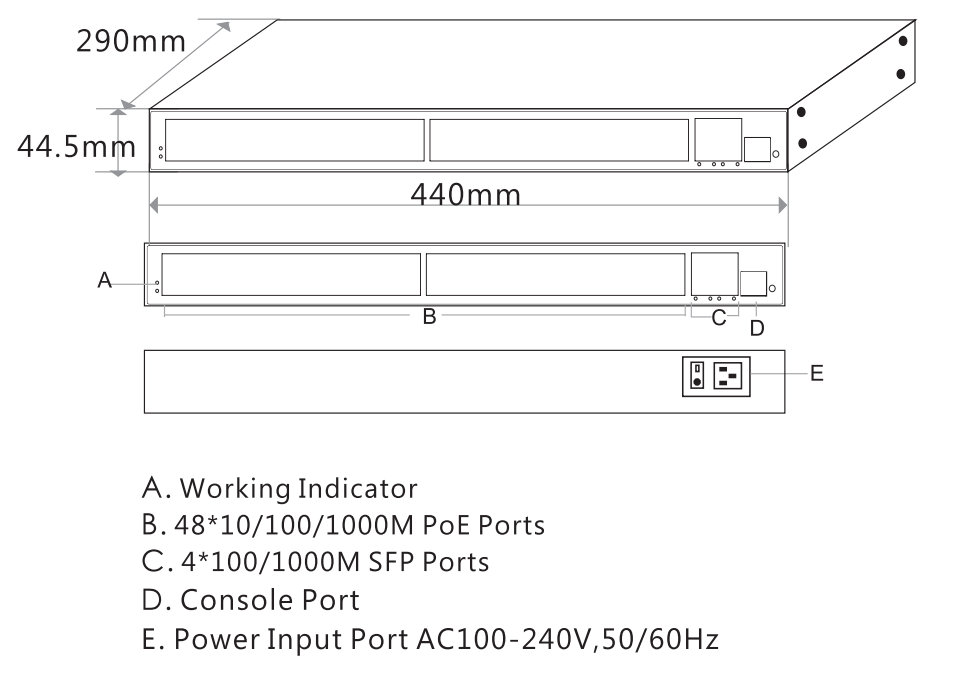

DIMENSION

APPLICATION

ORDERING INFORMATION

Model	Description
BD-S36048PFM	L2+ managed PoE switch with 48* 10/100/1000M RJ45 ports and 4*100/1000M SFP fiber slot ports. Port 1-48 can support IEEE802.3af/at PoE standard. Built-in 600W power supply. Support 1U/19 inch rack installation.
Note: The SFP optical module is not included by default and needs to be purchased separately.

PACKING LIST

Packing List	CONTENT	QTY	UNIT
	52-port full gigabit managed PoE switch	1	SET
	AC Power Cable	1	PC
	RJ45-DB9 Line	1	PC
	Mounting Kits(Hanging Ear)	1	SET
	User Guide	1	PC
	Warranty Card	1	PC
