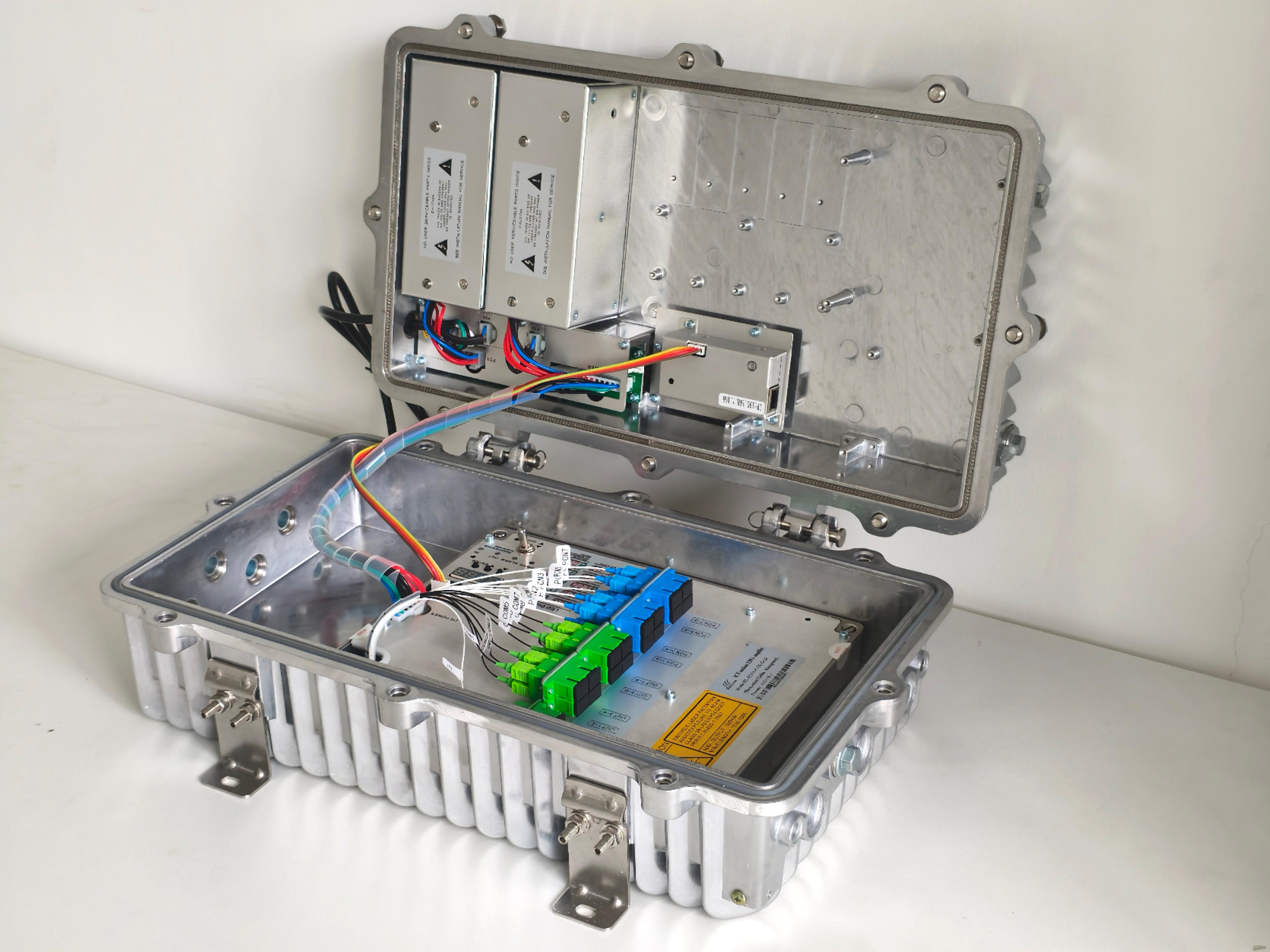

The Baudcom Outdoor Optical Amplifier EDFA (Erbium-Doped Fiber Amplifier) is a carrier-grade optical amplifier equipped with 8 independent output ports and embedded WDM multiplexing. Engineered for GPON XPON network expansion, the unit supports downstream amplification with WDM channels for OLT connection, streamlining fiber distribution and minimizing passive loss.

EDFA with WDM Technical Features:

• Output Ports: 8 × SC/APC with +17 dBm per channel

• WDM Support: Integrates 1490/1550/1310 nm for full OLT compatibility

• Noise Figure: ≤ 5 dB

• Gain: ≥ 23 dB

• Power Redundancy: Dual power modules (hot-standby), automatic switchover

• Power Input: 90–264 VAC or –48 VDC

• Monitoring: SNMP, RS485, RS232, local LCD interface

• Environment: IP66 enclosure, operating –40 °C to +65 °C

Outdoor Optical Amplifier Applications:

• PON backbone and edge amplification

• GPON/XPON deployments with integrated WDM

• Outdoor cabinets, base stations, and long-haul fiber links

• FTTx, WDM-PON, and RF overlay environments

Mounting Options: Wall and pole kits included

Outdoor Optical Amplifier Certifications: CE, RoHS, ISO9001

For full documentation or large-quantity inquiries, please contact Sales or request a quote via the product page.
