HDMI Extender Over Cat6 up to 60m – 1080p 60Hz – Zero Latency – Plug & Play
HDMI over Ethernet Extender supports uncompressed 1080p@60Hz video over Cat6/6A/7 cables with zero latency, plug and play, no need to configure

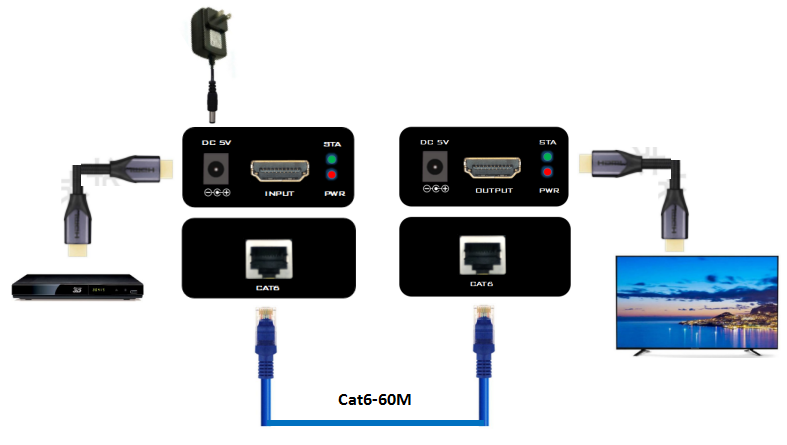

Extend your HDMI signal up to 60 meters without losing quality! This HDMI extender 60m set (TX & RX) supports uncompressed 1080p@60Hz video over Cat6/6A/7 cables with zero latency. Automatically adjusts to your display and supports HDCP 1.3. With Power over Cable, only the transmitter needs power—receiver draws power through the network cable. Perfect for presentations, gaming, streaming, digital signage, and AV installations. Easy setup, no software required.
HDMI extender 60m Features
- Uncompressed 1080P@60Hz
- Support 3D
- 60M Distance
- Built-in ESD protection
- Strong compatibility&automatic recognition
- HDCP 1.3; HDMI1.3
- Smoothing & Zero delay Pictures Plug and Play
Specification
|
Parameter |
Description |
|
|
Video
|
Standards |
HDMI 1.3; HDCP 1.3 |
|
Maximum pixel clock |
165MHz Digital |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, |
|
|
HDMI |
Impedance |
100Ω |
|
Connector |
HDMI-A |
|
|
HDMI cable |
Less than 5m at 1080p@60hz |
|
|
RJ45 |
Interface |
RJ45 |
|
Transmission distance |
CAT6/7— 60m at 1080p@60hz |
|
|
Network cable |
Low resistance and consumption oxygen-free copper core （CAT6、CAT6A、CAT7） |
|
|
Other |
Power supply |
The power adapter: DC 5V/1A |
|
Power dissipation |
MAX 3W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
79*43*23mm |
|
|
The warranty |
1 year free warranty |
|
订购信息
| BD-UTP-HDMI-01H | HDMI Extender, uncompressed full HD 1080p@60Hz HDMI, CAT6/6A/7 60meter, a transmitter and a receiver |
Send an Inquiry
Tell us your required quantity, destination country, and any technical requirements. We'll reply within 12 hours.
