1080P HDMI KVM Fiber Optic Extender for Video, Audio, and USB Signal Transmission
HDMI extender kit is ideal for high-performance applications, this extender ensures smooth, stable, and high-quality long-distance video and data transmission.
This complete HDMI over Fiber Extender Kit allows you to transmit high-definition 1080P video, USB KVM, stereo audio, RS232, and GPIO signals over an incredible 20km distance using just one fiber optic cable. Ideal for remote displays, security monitoring, lecture halls, and industrial control systems. The kit includes everything: transmitter, receiver, two SFP modules, USB cable, and dual power adapters. With support for resolutions up to 1920×1200@60Hz, automatic signal adjustment, and HDCP compliance, it guarantees a secure, stable, and high-quality AV extension right out of the box.
► Transmits HDMI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps;
► Support general-purpose input/output (GPIO) signal;
► Support HDMI loop out
► Auto EDID can be disabled via DIP switch
► Compliance with HDMI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play

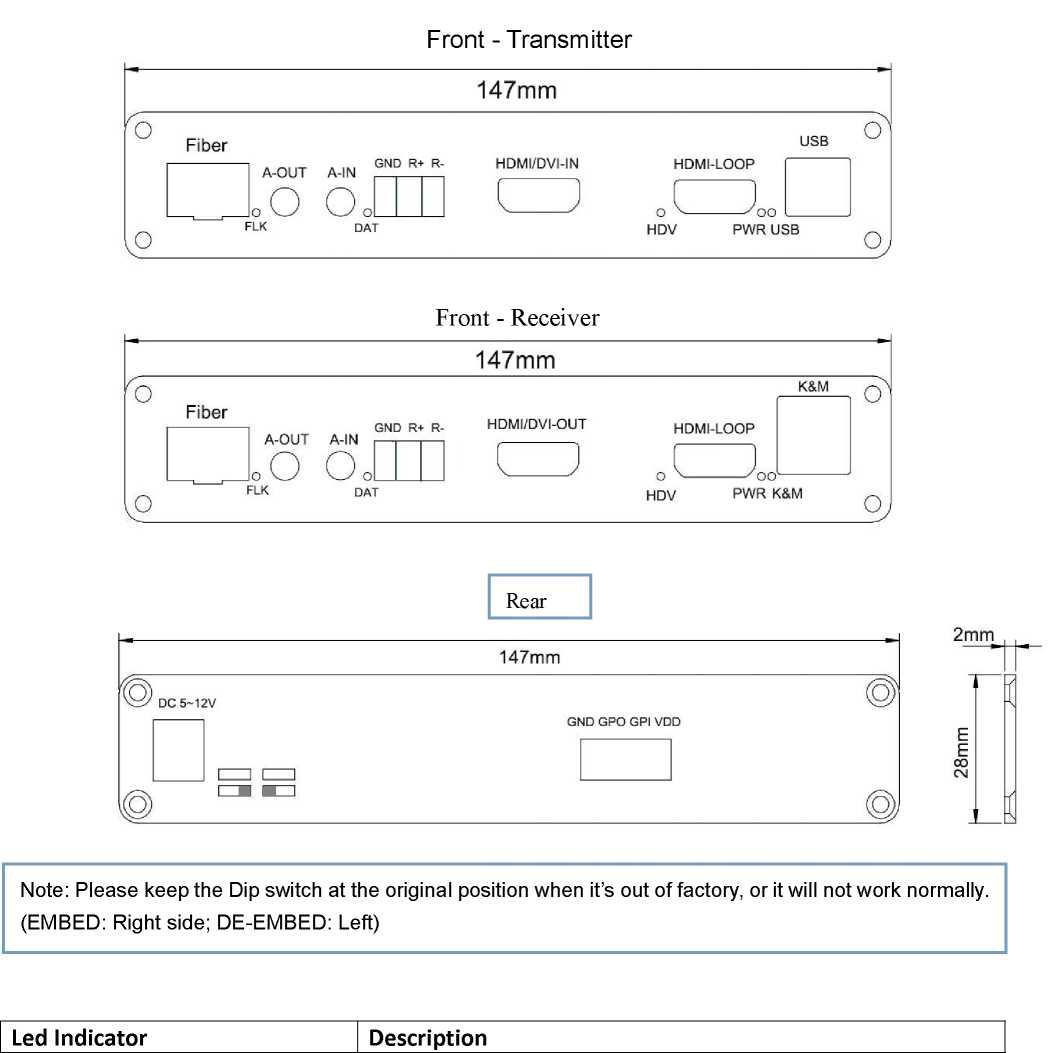

HDV
HDMI Video signal connection indicator
FLK
Fiber Connection status
DAT
RS232 Data Transmission status
USB
USB Connection ( To PC)
K&M
USB Keyboard and Mouse Connection
PWR
Power indicator

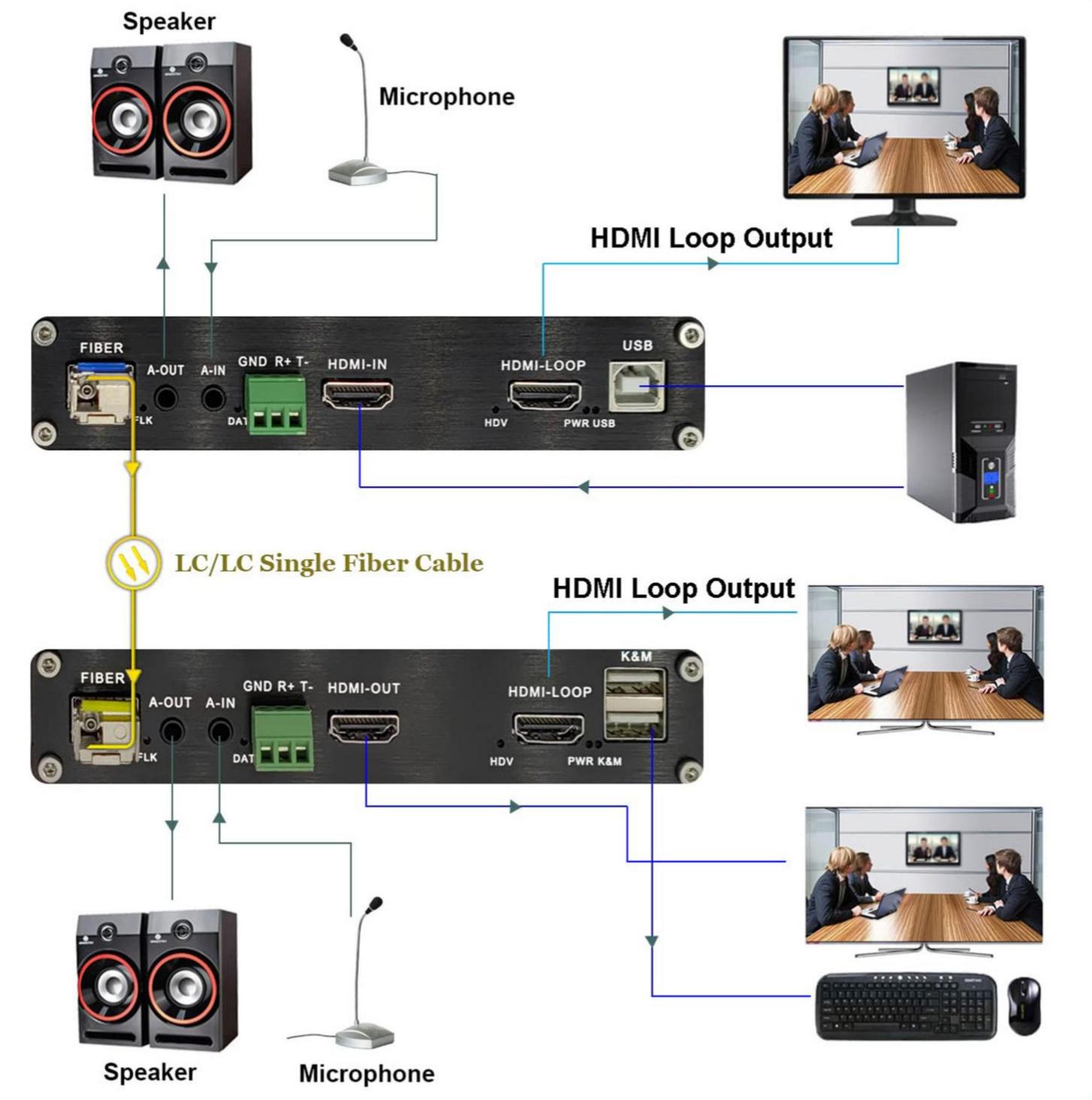

Installation
1. The HDMI signal source access HDMI Optical Fiber Transmitter
2. The HDMI Optical Fiber receiver connected to a display device (such as high-definition TV, splicing screen, etc.),
3. The LC interface optical fiber line connects the Transmitter and the receiver SFP optical fiber interface module,
4. The Transmitter and the receiver connected to the power, when the lamp lights up normally, normal operation of system.
Parameter
Description
Video
Standards
HDMI V1.3
Maximum pixel clock
165MHz
Maximum data rate
2.97Gbps
Resolution
1920*1080@60Hz 1920*1080@50Hz
1920*1080@30Hz 1920*1080@25Hz
1920*1080@24Hz
1080I@60Hz 1080I@50Hz
1280*720@60Hz 1280*720@50Hz
Connector
HDMI
Impedance
100Ω
Audio
Interface
3.5mm earphone seat
Signal type
Stereo
K/M
Interface
To PC: MINI-USB
To keyboard and mouse: USB-A
GPIO
Interface
Industrial terminal
RS232
Interface
Industrial terminal
Signal direction
Unidirectional
Baud rate
Self-adaptive, Max: 460,800bps
Data bits
8
Optical fiber
Interface
LC connector
Fiber type
Single-mode single fiber
Wavelength
Single-mode 1310nm
Interface bandwidth
3Gbps
Transmission distance
standard 20km
Other
Power supply
The power adapter: DC 12V/1A
Power dissipation
MAX 6W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension (LxWxH)
168*115*28mm
The warranty
1-year warranty
Package list
• HDMI KVM Optical Fiber Transmitter 1 PCS
• HDMI KVM Optical Fiber Receiver 1 PCS
• SFP Optic Module 2 PCS
• USB Cable 1 PCS
• Power Adapter 2 PCS
• User Manual 1 PCS
