DESCRIPTION

Model: BD-S-Clamp

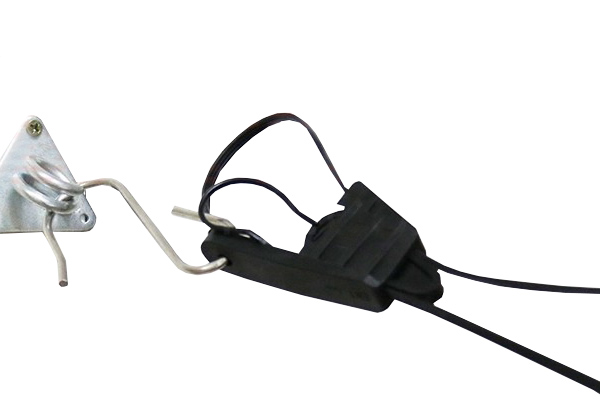

FTTH cable clamp is tension clamp for FTTH drop cable. The drop wire clamp is
to connect a triplex overhead entrance cable to a devices or buildings.Widely
used both indoor installation and outdoor installation.Provided with a serrated
shim to increase hold on drop wire. Used to support  one and two pair
 telephone drop wire at span clamps,drive hooks, and various drop
attachments.  The s hook drop wire clamps can withstand the rigors of all
environmental conditions in the telecommunications outside plant. The placement
of slots and a hole in the clamp’s inner
wedges allow for proper cable slack adjustment, tensioning and assistance with
re-entry.

The drop
wire clamp is composed of a mandrel shaped body and an opened bail that can be
locked into the clamp body. It is made out of UV resistant nylon and steel.

BAUDCOM offer
this tension clamp with appropriate fish type, S-type and other FTTH clamps.

All the
assemblies passed the tensile tests, operation experience with temperatures
ranging from – 60 °C up to +60 °C test, temperature-cycling test.

FEATURES

• Unique
hook and wedge lock design.

• Easy
cable slack adjustment to apply proper tension.

• Can be
re-entered and reused.

• Weather
and corrosion resistant Nylon PA66 body.

• SS201
hook for maximum corrosion resistance.

• No
special tools required for installation.

• No loose
parts – wedge is tethered to clamp body.

ORDERING
INFORMATION
