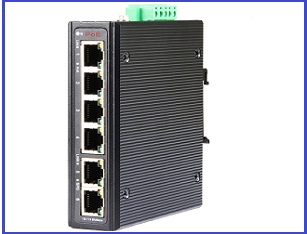

6-Port 10/100M Industrial POE Switch
BD-IPS31064P product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment.
INFORMATION
Features:
● 4x 10/100M POE Ports, 2x 10/100M adaptive Ports
● Power ports support both IEEE802.3af and IEEE802.3at standard PoE power supply
● Support IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
● Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
● LED indicators
● Provides rail-type installation method
● Electromagnetic compatibility of up to 4 grade standard
● IP40 protection class
● Superior performance, successfully used in industrial field
● Default PoE power supply type is end-span, mid-span optional.
Product Description:
4x 10/100M POE ports, 2x 10/100M adaptive Ports, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. It simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals. BD-IPS31064P product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment
Technical Specifications
|
Product Name |
6-Port 10/100M Industrial POE Switch |
|
Product Model |
BD-IPS31064P |
|
Interface |
4x 10/100M POE Ports, 2x 10/100M adaptive Ports |
|
PoE Specification |
PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
|
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
4 PoE port auto detect af/at devices |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Forwarding Mode |
Store-and-forward |
|
Performance Specification |
Bandwidth: 1.6Gbps SRAM Buffer: 448Kbits |
|
Standards Compliance
|
IEEE802.1P IEEE802.1q IEEE802.3az IEEE802.3af IEEE802.3at |
|
LED Indicators |
POE Port: Link/Act, POE RJ45 Port:Link/Act, SPD |
|
Power |
5.08mm 5-pin industrial terminal block Input voltage:DC48~57V |
|
Product Size |
W×D×H: 119x105x30mm |
|
Working Environment |
Working Temperature: -40～85℃ Working Humidity: 5%～95%（non-condensing） |
|
Radiation |
CE mark, commercial |
|
Safety |
CE Mark, commercial |
|
Warranty |
5 years warranty |
