PoE Switch with 8x 10/100M Ports and 2x Gigabit Ports

Category: POE Ethernet switch

Product Description

Product
Description

This BD-POE31108PG-at switch provides a network
point for power supply and data transmission. All the 8 Ethernet ports can be
connected with 10/100Mps quickly, and the uplink port is 8.8Gbps interface,
among which 1-8 ports can provide standard IEEE 802.3af/at power supply. Due
the advanced self-sensing algorithm supply power for IEEE802.3af/at terminal
unit, there is no need to worry about damaging proprietary PoE or non-PoE
standard equipment. In addition, it will stop power supply when PoE devices are
not connected. In short, The POE31108PG-at features simple and reliable design,

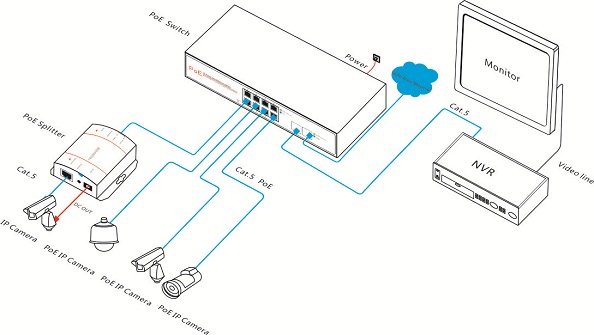

This cost-effective BD-POE31108PG-at provide network layout need to simplify
wireless access point (AP) and IP-based surveillance cameras network cameras in
order to install in commercial network and home network. The devices far away
from power socket are very suitable for hanging on the wall or ceiling. PoE
eliminates the need for connecting these devices to power socket. So it make
more flexible for those difficult to connect with AC power socket, and cut down
the installation cost. It is ideal choice for those want to deploy a small
commercial network and home network that use wireless access point (AP) and
IP-based surveillance cameras.

Features

● Can supply power to network surveillance cameras that without PoE
function

● 8x 10/100
Mbps auto-sensing RJ45 ports

● Supports
port auto-flip (Auto MDI/ MDIX)

● Uplink
port: 8.8Gbps
interface

● Maximum
PoE power: 250W (all PoE
ports, 1 to 8 ports)

● Maximum
power per port: 30W

● Adopts
store-and-forward architecture

● All ports
support wire-speed switching, frame size within the range of 64 to 1536 can
achieve wire-speed

● Features
with fanless, natural cooling, small, compact and quiet design, suitable for
desktop or wall

● Built-in
1U rack power supply series, easy to place it into standard mounting brackets

Technical Specification

Product Name	PoE Switch with 8x 10/100M Ports and 2x uplink RJ45 Port
Product Model	BD-POE31108PG-at
Connector	8x 10/100M copper cable RJ45 PoE ports(all ports support MDI/MDIX), 2x Gigabit Uplink RJ45 ports
Transfer Mode	Store-And-Forward
Network Medium	10BASE-T: Cat3/4/5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP(≤100 meter)
Network Medium	Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance Specifications	Bandwidth: 8.8Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20 microseconds Packet Buffer Memory: 2.75M Address Database Size: 4K MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3at
LEDs Status	System: power supply; Every Port: connecting, PoE working status
Power	Maximum PoE switch power:250 W PoE port power:30W(1～8 port) Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

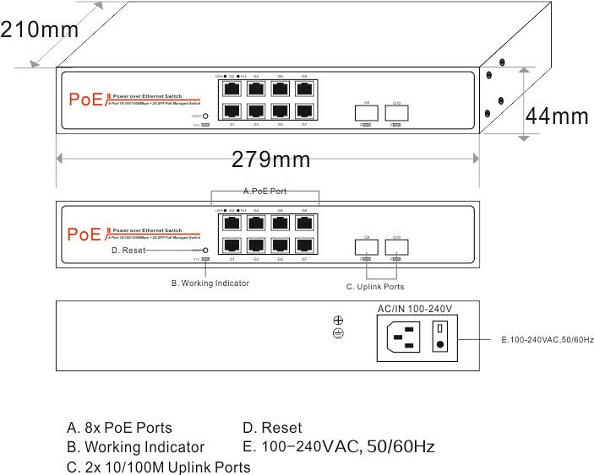

Dimensions/Weight	Dimensions: 279x210x44mm Weight: 1.61kg
Working Environment	Operating Temperature: -20 ° ~ 75 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950
Warranty	1 year warranty(2 years for power adapter)
