8-Port Gigabit PoE Switch with 8 Gigabit PoE Ports 15.4W

Category: POE Ethernet switch

Product Description

Product
Description

The 8 gigabit PoE ports provide fast connection to
servers or the backplane of the gigabit speed. The effective connectivity of
the four 10/100/1000Mbps ports, allows growing business networks, classrooms
and workgroups to obtain benefits from the demand for superior performance and
sustain network expansion. This high-performance switch features with
non-blocking, wire-speed switching, and 16Gbps switching capacity. All RJ45 PoE
ports can auto adjust the highest connection speed for a normal working, This
cost-effective BD-POE33008P provide network layout need to simplify wireless
access point (AP) and IP-based surveillance cameras network cameras in order to
install in commercial network and home network. The devices far away from power
socket are very suitable for hanging on the wall or ceiling. PoE eliminates the
need for connecting these devices to power socket. So it make more flexible for
those difficult to connect with AC power socket, and cut down the installation
cost. It is ideal choice for those want to deploy a small commercial network
and home network that use wireless access point (AP) and IP-based surveillance
cameras.

Features

◆Supply power to 5 classes Ethernet wireless access point (AP)
and network surveillance cameras (PoE)

◆Port 1 to port 8 compatible with
IEEE802.3af standard power

Supply
(Maximum power of each port is 15.4W)

◆8x 10/100 /1000Mbps automatic adjustment
RJ45 PoE ports

◆Meets the standards of the IEEE 802.3af/
IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab

◆Flow Control Type: Full duplex adopts IEEE
802.3x standard, half duplex adopts back pressure standard

◆Network
port has lighting-proof function (AC power
port: differential mode +/-2kV, common mode +/-4kV)

◆Maximum PoE Power: 120W (all PoE ports,
port 1 to port 8)

◆ Store-and-forward architecture, 192K
forwarding memory

◆All
ports support wire-speed switching, frame size within the range of 64 to 1536
can achieve wire-speed

◆Wall-mounted design, easy to install
and use

◆
Automatic adjustment, plug and play, no need software and protocol conversion

Technical Specification

Product Name	8-Port Gigabit PoE Switch with 8 Gigabit PoE Ports 15.4W
Product Model	BD-POE33008P
Connector Type	8x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment)
Forwarding Mode	Store-and-forward architecture, line speed forwarding
Network Medium	1000BASE-TX: Cat5 or more UTP(≤100 meters)
Performance Specifications	Bandwidth: 16Gbps (non-blocking) MAC Address Table: 8K MTBF: 190,000 hours (about 21 years)
PoE Description	IEEE 802.3af, each port power is 15.4W; Port1 to Port8 support PoE power; End-span(1/2+, 3/6- line pair) power supply, can be customized mid-span(4/5+, 7/8- line pair) power supply
Network Protocols and Standards	IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af
LED Indicator Status	Power, Network, PoE working status
Power	IEEE802.3af standard, each port power is 15.4W, total power is 120W
Voltage	Input: AC100~240V 50/ 60Hz
Dimension	189 x 28 x 102mm
Working Environment	Operating Temperature: 0 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950,RoHS
Warranty	1 year warranty

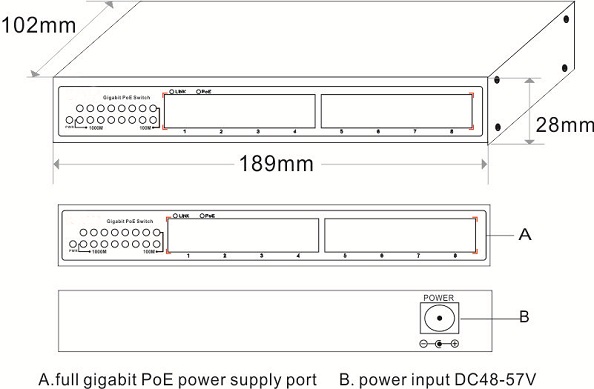

Product Dimension Display:

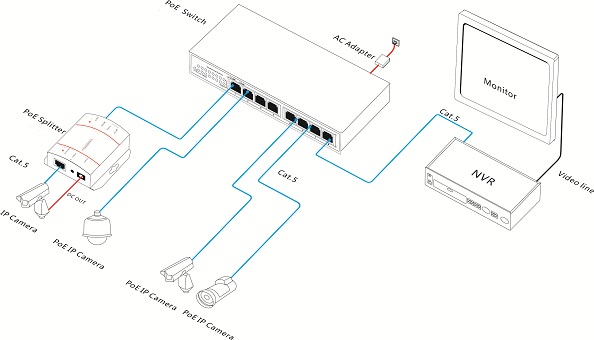

Product Usage Display

Product Ordering Information

Model

Description

Ordering Note

BD-POE33008P

8-Port gigabit PoE switch with 8 gigabit PoE ports,
port 1 to port 8 supports POE IEEE 802.3af international standard, each port
power is 15.4W, the whole power is 120W

Default PoE power supply type is end-span
(12, 36 line pair), mid-span (45, 78 line pair) can be customized

Product packing List

Packing Lists	8-Port gigabit PoE switch with 8 gigabit PoE ports 15.4W (BD-POE33008P)
	Power Adapter
	Mounting kits
	User Guide
	Warranty Card
