Ethernet Switch with 24 Gigabit Ports and 2 SFP Ports

Category: POE Ethernet switch

Product Description

Product Description:

This BD-S33024PF switch provides a network point for
data transmission. All the 24 Ethernet ports can be connected with 10/100/1000Mps
quickly, and the uplink port is 1.25Gbps fiber interface. This switch features
simple and reliable design, automatic identification Ethernet requirements,

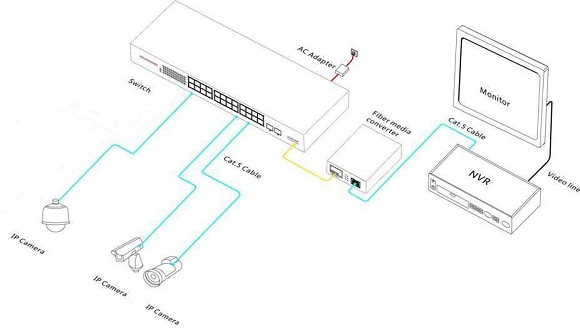

duplex and high-speed. This cost-effective switch provides network layout need
to simplify wireless access point (AP) and IP-based surveillance cameras
network cameras in order to install in commercial network and home network. It
is ideal choice for those want to deploy a small commercial network and home
network that use wireless access point (AP) and IP-based surveillance cameras.

Features:

● Can transfer
data for network surveillance cameras

● 24x 100Mbps
auto-sensing RJ45 ports, 2x
10/100/1000M SFP ports

● Supports
port auto-flip (Auto MDI/ MDIX)

● Uplink
port: 1.25Gbps SFP fiber
interface

● Maximum
power consumption: 20W

● Adopts
store-and-forward architecture

● Features
with fanless, natural cooling, small, compact and quiet design, suitable for
desktop or wall mounting

● Built-in
1U rack power supply series, easy to place it into standard mounting brackets

● Optic
fiber module is not included, can be ordered separately

Technical
Specification:

Product Name	Ethernet Switch with 24 10/100/1000M Ports and 2 Gigabit SFP Ports
Product Model	BD-S33024PF
Connector	24x 10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) + 2x 10/100/1000M SFP ports
Transfer Mode	Store-And-Forward
Network Medium	10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 and more UTP(≤100 meter)
Network Medium	Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance Specifications	Bandwidth: 8.8Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20 microseconds Packet Buffer Memory: 96KB Address Database Size: 1,000 MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control
LEDs Status	System: power supply; Every Port: connecting, Ethernet working status
Power Consumption	20W

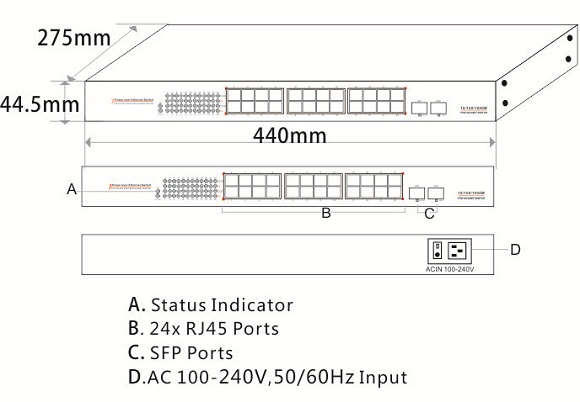

Dimensions/Weight	Dimensions: 440x275x44.5mm; Weight:4.878kg
Working Environment	Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950
Warranty	1 year warranty
