High Power PoE Switch with 16x Ethernet Ports and 2x Gigabit Combo Ports

Category: POE Ethernet switch

Product Description

Product
Description

This BD-POE31016PF-at switch provides a network
point for power supply and data transmission. All the 16 Ethernet ports can be
connected with 10/100Mps quickly, and the uplink port is 155Mbps fiber
interface, among which 1-16 ports can provide standard IEEE 802.3af/at power
supply. Due the advanced self-sensing algorithm supply power for IEEE802af/at terminal
unit, there is no need to worry about damaging proprietary PoE or non-PoE
standard equipment. In addition, it will stop power supply when PoE devices are

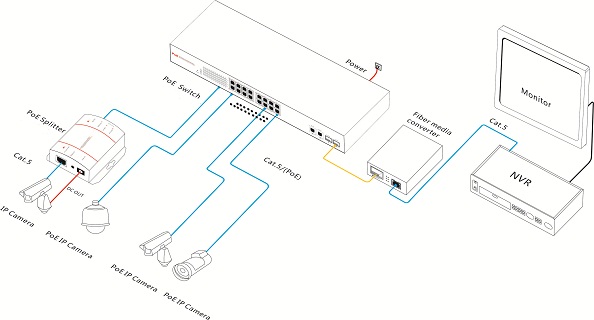

not connected. This cost-effective BD-POE31016PF-at provide network layout need
to simplify wireless access point (AP) and IP-based surveillance cameras
network cameras in order to install in commercial network and home network. The
devices far away from power socket are very suitable for hanging on the wall or
ceiling. PoE eliminates the need for connecting these devices to power socket.
So it make more flexible for those difficult to connect with AC power socket,
and cut down the installation cost. It is ideal choice for those want to deploy
a small commercial network and home network that use wireless access point (AP)
and IP-based surveillance cameras.

Features

● Can supply power to network surveillance cameras that without PoE
function

● 16x
10/100Mbps auto-sensing RJ45 ports, 2x Gigabit electrical and SFP fiber combo
ports

● Supports
port auto-flip (Auto MDI/ MDIX)

● Uplink
port: 155Mbps SFP interface

● Maximum PoE power: 400W (Port
1 to Port 16)

● Maximum power per port: 30W

● Adopts store-and-forward architecture

● IEEE 802.3at power on up to 16 ports

● Features with fanless, natural cooling, small, compact and quiet
design, suitable for desktop or wall

● Built-in
1U rack power supply series, easy to place it into standard mounting brackets

Technical Specification

Product Name	High Power PoE Switch with 16x PoE Ports and 2x Gigabit Combo Ports
Product Model	BD-POE31016PF-at
Connector	16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit electrical and SFP combo ports
Transfer Mode	Store-And-Forward
Network Medium	10BASE-T: Cat3/4/5 UTP(≤100 meter) 100BASE-TX: 5 classes and more than 5 classes(≤100 meter)
Network Medium	Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance Specifications	Bandwidth: 3.2Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20 microseconds Packet Buffer Memory: 2.75M Address Database Size: 4K MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3at
LEDs Status	System: power supply Every Port: connecting, PoE working status
Power	Maximum PoE power: 400W PoE port power: 30W(1~16 port) Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

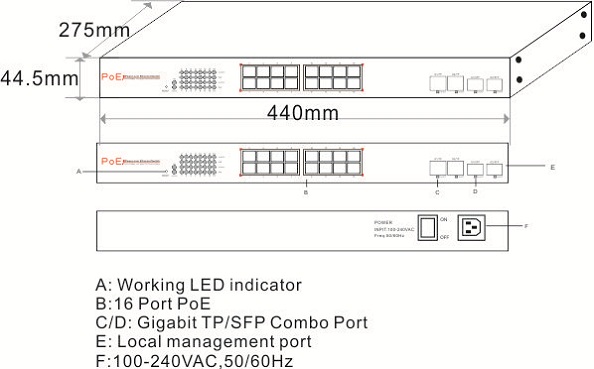

Dimensions/Weight	Dimensions: 440x275x44.5mm
Working Environment	Operating Temperature: -20 ° ~ 75 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950
Warranty	1 year warranty(2 years warranty for power adapter)
