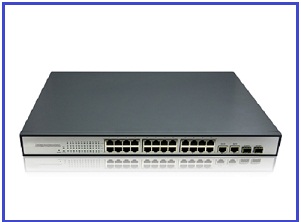

This BD-S31024FM switch provides a network point for data transmission. All the 24 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 1.25Gbps fiber interface. The switch features simple and reliable design, automatic identification Ethernet requirements, duplex and high-speed.

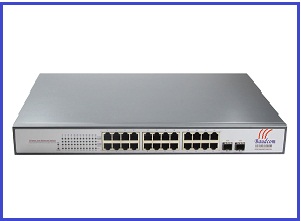

This BD-S33024PF switch provides a network point for data transmission. All the 24 Ethernet ports can be connected with 10/100/1000Mps quickly, and the uplink port is 1.25Gbps fiber interface. This switch features simple and reliable design, automatic identification Ethernet requirements, duplex and high-speed.

24Ports Unmanagable Fast Ethernet Optical switch

24Ports Unmanagable Fast Ethernet Optical switch

BD-24E1-GE-CON is a Gigabit Ethernet aggregator with inverse multiplexing and VLAN TAG function; it provides three gigabit Ethernet interfaces (2 electrical and 1 optical Ethernet interfaces) compliant with IEEE 802.3 series standard and up to 24 E1 interfaces. It can separate the Ethernet data from GE port (the carried VLAN Tag correspond to different VCG channels), encapsulate them into EoPDH signal, and then into E1 signal; in the opposite direction, it can de-map the Ethernet data from E1 signal, aggregate them into GE port.

BD-24E1-GE-CON is a Gigabit Ethernet aggregator with inverse multiplexing and VLAN TAG function; it provides three gigabit Ethernet interfaces (2 electrical and 1 optical Ethernet interfaces) compliant with IEEE 802.3 series standard and up to 24 E1 interfaces. It can separate the Ethernet data from GE port (the carried VLAN Tag correspond to different VCG channels), encapsulate them into EoPDH signal, and then into E1 signal; in the opposite direction, it can de-map the Ethernet data from E1 signal, aggregate them into GE port.

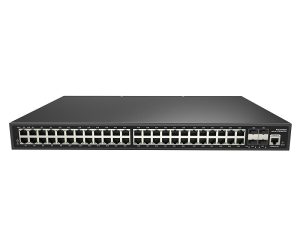

The BD-S36048PFM is a full gigabit managed PoE switch. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Port 1-48 can support IEEE802.3af/at standard PoE power supply. single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply.It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitory and small and medium-sized enterprise.

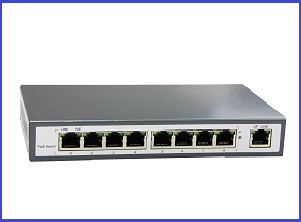

BD-POE34008P PoE switch provides the transmission between power and data from a network node through Cat5 Ethernet cable. This 9-Port PoE switch comes with 4 super high power PoE ports and 4 standard PoE ports, and Port1 and Port4 support super high power special for high-speed dome cameras, Port5 to Port8 supports IEEE802.3af/at standard. The advanced self-adaptive algorithm can supply power to IEEE802.3af/at terminal devices; there is no need to worry about the damage to the standard PoE or non-standard PoE devices.

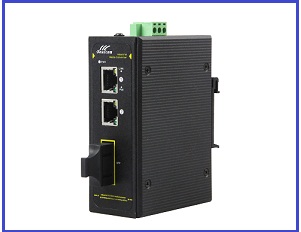

BD-SIPS31032P-M product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method.

BD-SIPS31032P-S product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method.
