PoE Switch with 16xx PoE Ports and 2 Gigabit Combo Ports

This cost-effective BD-POE31016PF provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Category: POE Ethernet switch

Request price Skype WhatsApp

Product Description

Product
Description

This BD-POE31016PF switch provides a network point
for power supply and data transmission. All the 16 PoE ports can be connected
with 10/100Mps quickly, and the uplink port is 1.25Gbps fiber interface, among
which 1-16 ports can provide standard IEEE 802.3af power supply. Due the
advanced self-sensing algorithm supply power for IEEE802af terminal unit only,
there is no need to worry about damaging proprietary PoE or non-PoE standard
equipment. In addition, it will stop power supply when PoE devices are not
connected. In short, The POE31016PF features simple and reliable design,
automatic identification PoE requirements, duplex and high-speed. This
cost-effective BD-POE31016PF provide network layout need to simplify wireless
access point (AP) and IP-based surveillance cameras network cameras in order to
install in commercial network and home network. The devices far away from power
socket are very suitable for hanging on the wall or ceiling. PoE eliminates the
need for connecting these devices to power socket. So it make more flexible for
those difficult to connect with AC power socket, and cut down the installation
cost. It is ideal choice for those want to deploy a small commercial network
and home network that use wireless access point (AP) and IP-based surveillance
cameras.

Features

◆Can supply power to network surveillance cameras that without PoE
function

◆16x
10/100Mbps auto-sensing RJ45 ports, 2x Gigabit combo ports

◆Supports
port auto-flip (Auto MDI/ MDIX)

◆Uplink port: 1.25Gbps SFP interface

◆Maximum PoE power: 250W (Port 1 to Port)

◆Maximum power per port: 15.4W

◆Adopts store-and-forward architecture

◆ IEEE 802.3af power on up to 16 ports

◆Features with fanless, natural cooling, small, compact and quiet
design, suitable for desktop or wall

◆ Built-in 1U rack power supply series, easy to place it into
standard mounting brackets

Technical Specification

Product Name	PoE Switch with 16x Ethernet PoE Ports and 2x Gigabit Combo Ports
Product Model	BD-POE31016PF
Connector	16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit combo ports
Transfer Mode	Store-And-Forward
Network Medium	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: 5 classes and more than 5 classes(≤100 meter)
Network Medium	Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance Specifications	Bandwidth: 3.2Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20 microseconds Packet Buffer Memory: 2.75M Address Database Size: 4K MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
LEDs Status	System: power supply Every Port: connecting, PoE working status
Power	Maximum PoE power:250 W PoE port power:15.4 W(1~16 port) Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
Dimensions/Weight	Dimensions: 440x275x44.5mm, 4.752kg
Working Environment	Operating Temperature: -20 ° ~ 75 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Radiation	CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial CE/LVD EN60950
Warranty	1 year warranty(2 years warranty for power adapter)

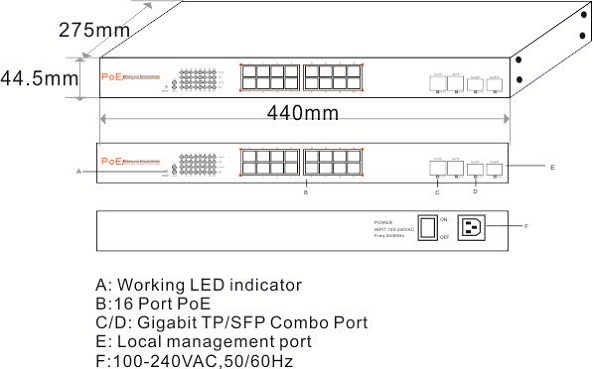

Product Dimension Display:

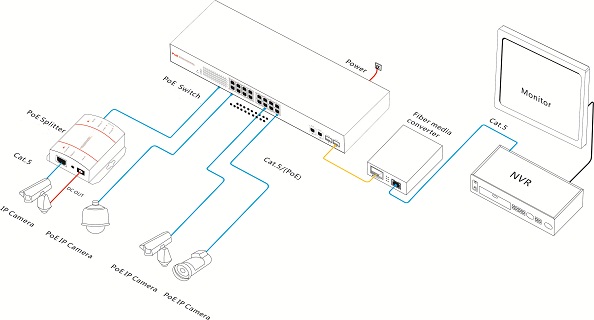

Product
Usage Display

Product Ordering Information

Model

Description

Ordering Notes

BD-POE31016PF

16x
10/100M Ethernet PoE ports + 2x gigabit combo ports PoE switch, and 1-16
ports supports IEEE802.3af POE international standard, each port power is15.4W,
whole power is 250W

PoE default power
supply is

end-span (1/2,3/6
line pair),

alternative
PoE Power supply

is mid-span
(4/5,7/8 line pair)

Product packing List

Packing List	PoE Switch with 16x PoE Ports and 2x Gigabit Combo Ports (BD-POE31016PF)
	Power Cable
	User Guide
	Warranty Card

订购信息

BD-POE31016PF

16x
10/100M Ethernet PoE ports + 2x gigabit combo ports PoE switch, and 1-16
ports supports IEEE802.3af POE international standard, each port power is15.4W,
whole power is 250W
