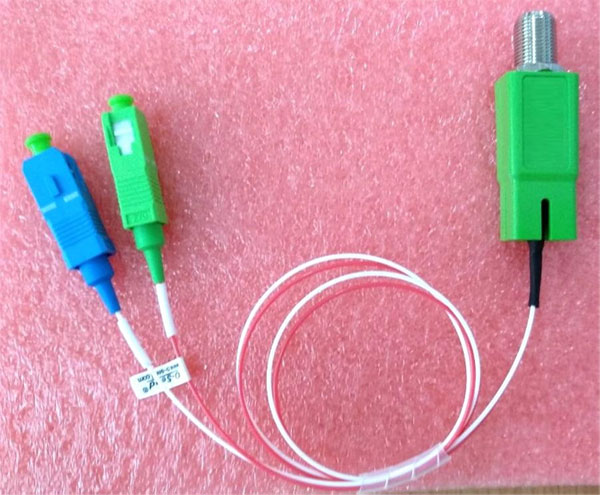

Pigtail type Passive CATV Optical Receiver with WDM

Category: CATV Transmitter Receiver Amplifier

Product Description

The optical receiver is the featured product that we specially designed for FTTH-Fiber to the Home network structure. The optical receiver integrated with WDM.

Feature

Ø High responsivity PD with excellent CNR at low optical input power

Ø Built-in WDM, single-fiber to the home (1490/1310/1550nm)

Ø Using GaAs MMIC, excellent performance

Without power supply and consumption;

Specifications

	Unit	indicator
Optical parameters:
Input optical power	dBm	-15～0
Reflection loss	dB	＞45
Received light wavelength	nm	1310～1550
Input optical interface		SC/APC-SC/APC
Link performance:：
C/N	dB	≥51
C/CTB	dB	≥65
C/CSO	dB	≥62
RF parameters:
Frequency Range	MHz	47～1000
In-band flatness	dB	1.5
Output level	dBμV	50（-10dBm test) 60（-5dBm test) 64（-3dBm test) 70（0dBm test)
RF output impedance	Ω	75
Mer	dB	33（-10dBm test)
	dB	37（-5dBm test)
	dB	37（-3dBm test)
	dB	37（0dBm test)
